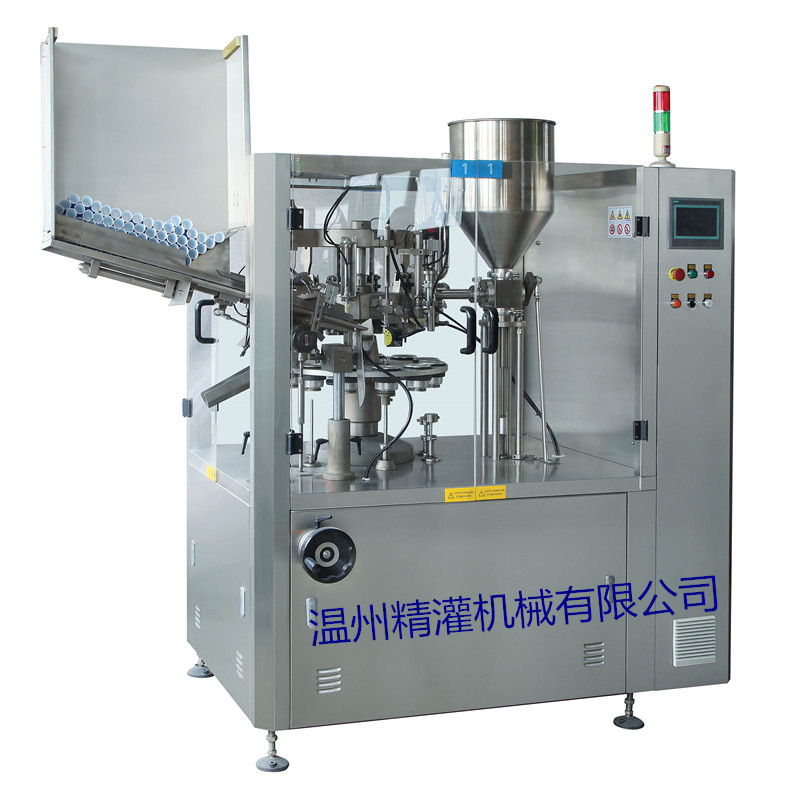

特點及參數 Features and parameters
•運轉速度：80/min/(max)
•Operation speed:80/min(max)
•灌裝容量：5-250ml
•Filling volume:5-250ml
•灌裝精度：≤±1%
•Filling precision:≤±1%
•適合軟管長度：50-210mm
•Suitable tube length:50-210mm
•適合軟管直徑：ø13-50mm
•Suitable tube diameter ：ø13-50mm
•喂管系統：斜掛式自動整列喂管倉
•Standard configuration: obliquely hanging type automatic lining-up tube feeding storehouse
•選配：鞍形折疊封尾裝置，并可通過調節實現折疊三邊及馬鞍折
•Standard configuration: saddle folding and sealing device, which can realize three-side and four-side folding through adjustment
•選配：夾層料桶保溫裝置
•Optional:jacket and barrel heat preservation device
•選配：料桶內部攪拌裝置
•Optional:blending device inside the barrel
•選配：自動控制上料裝置（泵）
•Optional:automatically controlled material feeding device(pump)
•選配：成品管輸出傳送裝置
•Optional:finished tube conveyor
適用于：塑料復合管及鋁塑復合管
Applicable to :plastic composite tubes and aluminum plastic composite tubes

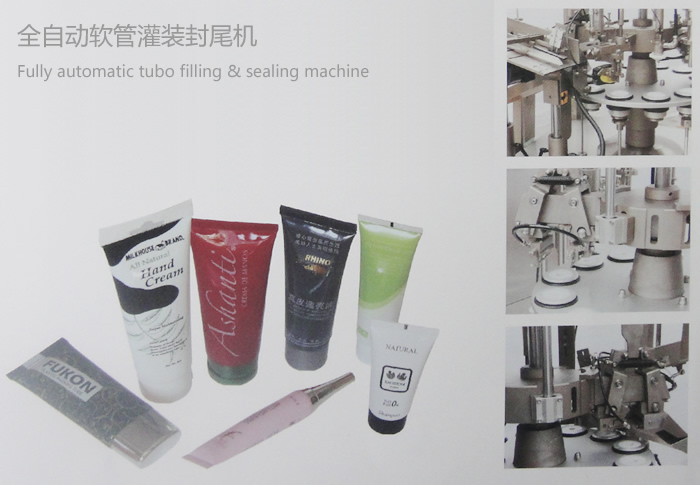

多色灌裝 Multicolor filling
特種管灌裝 Special tube filling
異型封尾 Special-shaped sealing
|
